Flatbed Trailer

Truck And Flatbed Trailer For Sale​

Truck And Flatbed Trailer For Sale​
Tare Weight: about 6.5T;
Payload: 60 T;
Leading Time: 30days
Brand: SF Trailer
Payment: T/T, L/C
Product Contact form

Specification Overview

Truck And Flatbed Trailer For Sale​ Specification

Truck And Flatbed Trailer For Sale​ is a type of trailer without compartments or fences, commonly used in the transport of large, heavy or inconvenient to place in the closed compartments of the goods, such as machinery and equipment, construction materials and so on. Truck And Flatbed Trailer For Sale​ have the advantages of strong load-bearing capacity and high transport efficiency, and are suitable for the turnover transport of bulk goods in factories, wharves, harbours, warehouses and other areas.

In specific applications, flatbed trailers can be towed by forklifts or tractor-trailers, and are suitable for transporting goods in a variety of scenarios.

For example, flatbed truck trailer​ are commonly used in the transport of industrial large tonnage goods, suitable for short-distance transit of heavy products, moving storage, machinery, logistics and other operations.
In summary, Truck And Flatbed Trailer For Sale each have their own application scenarios in the transport field, and flatbed truck trailer can be used as one of the means of transport for trucks to transport large or heavy goods.

Dimension 12.5m×2.5m×1.55m (Outside)
Payload 60T
Tare weight About 6.5T
Twist lock 12 units
Chassis
Main beam Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
Frame Beam Top Flange 14mm,width 140mm; Middle Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 500mm
Axle 3 axles, 13Ton Fuwa brand 16ton brake pads
Landing Gear 28T lifting capacity with two speed
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical/Bogie/Air Suspension
Leaf Spring 90mm(W)*13mm(T)*10 Layer
Pneumatic Braking System Dual line pneumatic brake system,T30 air chamber ,40L air tanks, WABCO Emergency relay valve
Rim 9.0-20*12 pcs
Tire 12R22.5*12 pcs
Accessories One standard tool box
Spare tire rack One
Electrical system 24 volt electrical system.7 pin electrical connector. Parking stop, reverse, number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Spot Promotion! Buy Flatbed Trailer and Free Tires

Truck And Flatbed Trailer For Sale​ Price: Customisation

The relationship between Truck And Flatbed Trailer For Sale​ is mainly in the field of transport, where flatbed trailers can be used as one of the means of transport for trucks.

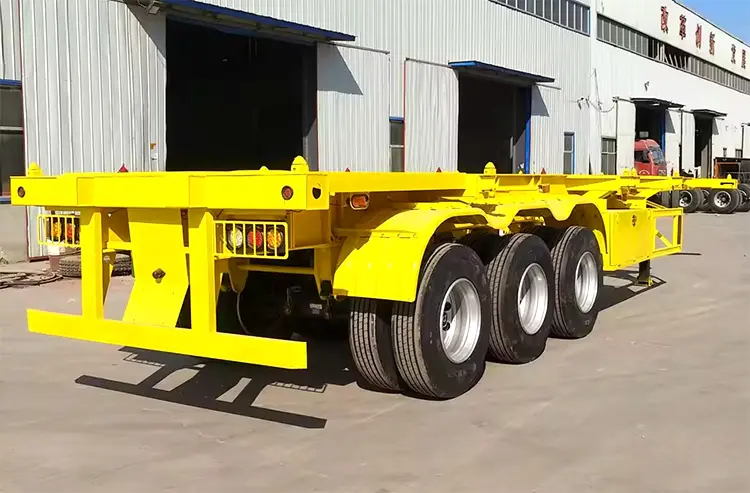

Truck And Flatbed Trailer For Sale​-1

Truck And Flatbed Trailer For Sale​  |  tri axle flatbed trailer for sale​  | flatbed truck trailer​

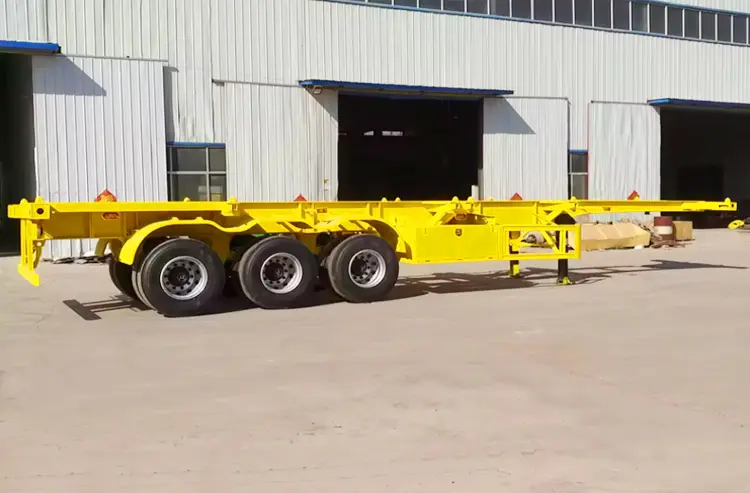

Truck And Flatbed Trailer For Sale​-3

Truck And Flatbed Trailer For Sale​  |  tri axle flatbed trailer for sale​  | flatbed truck trailer​

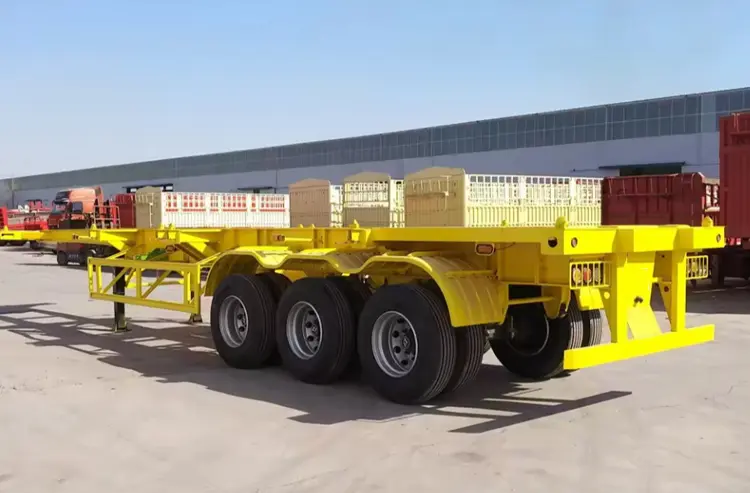

Truck And Flatbed Trailer For Sale​-2

Truck And Flatbed Trailer For Sale​  |  tri axle flatbed trailer for sale​  | flatbed truck trailer​
