Flatbed Trailer

Flatbed Truck Trailer​

Flatbed Truck Trailer​123
Tare Weight: Approx. 6.2 T;
Loading Capacity: 30-100T;
Leading Time: 30days
Brand: SF Trailer
Payment: T/T, L/C
Product Contact form

Specification Overview

Flatbed Truck Trailer Specification

China truck trailer SF Trailer Flatbed Truck Trailer dedicated to the transport of various containers, and also can be used to transport ordinary growth goods with its platform. Flatbed Truck Trailer has sufficient strength, and mainly used in transport system, such as ships, ports, routes, highways, transit stations, bridges, tunnels, multimedia transport system.
Flatbed Truck Trailer can carry 30ft and two 20ft containers.The Flatbed Truck Trailer capacity ranges from 20 tons to 80 tons with 2 axle, 3 axles, and 4 axles.



Type Flatbed Truck Trailer​
Tare Weight Approx. 6.2 T
Dimension 12400*2500*1550mm
Loading Capacity 30-100T
Axle 13T/16T, FUWA/BPW, etc
Rim 9.00*22.5/8.00-20/8.5-20
Tire 12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional
Suspension Mechanical suspension(Germany type or America type) or Air suspension
Leaf Spring 90(width)mm*13(thickness)mm*10 layer(especial for exporting market)
King pin Jost brand 2.0 or 3.5 inch
Spport leg Jost brand two speed
Main beam Q345B steel
Side beam 16mm channel steel (Material is Q235B steel)
Bottom Platform 3mm checquered steel plate
Side wall Optional
Brake chamber Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks
ABS Optional
Valve Wabco valve (especial for exporting market)
Light LED Light (especial for exporting market)
Voltage 24V
Receptacle 7 ways (7 wire harness)
Tool box One piece 1m *0.5m*0.5m ( size can be customized)
Painting 1 cost of anticorrosive primer, 2 coats of final paint, color advised by customer
Shipping terms By bulk vessel, RORO, or 40HQ container
Any parts fitted could according to clients request, contact us to get more.



Spot Promotion! Buy Flatbed Trailer and Free Tires

Flatbed truck trailer for sale ​Price: Customisation

Flatbed truck trailer for sale​ also known as: trailer, flatbed truck, trailer, full trailer, semi-trailer, trailer, logistics dolly, transport Flatbed truck trailer, tractor trailer , moving truck trailer, heavy steel flatbed trailer and so on! Flatbed truck trailer, by the chassis, lifting device, lifting and traction device, hydraulic system, electronic control system, body and toolbox, etc., with lifting, pulling and lifting traction and other functions. Flatbed truck trailer English interpretation: flatbed trailer.Flatbed truck trailer is on its industrial design and technical characteristics need to be motorised by the lorry traction, in order to normal use of a kind of unpowered road vehicle. Flatbed truck trailer  for sale​ is generally used for: industrial goods heavy transport or carrying personnel transport and other special purposes.

China truck trailer SF Trailer use high quality tensile steel to reduce beam fracture probability.30 Foot Flatbed Trailer main beam is opting for high tensile steel Q345B and axle can be selected of BPW or FUWA brand. China truck trailer SF Trailer adopt world famous brand of parts, like JOST, WABCO braking valve etc.

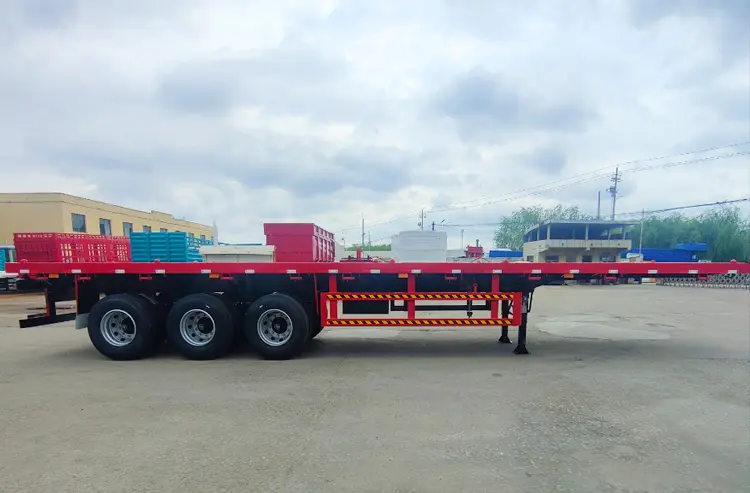

Flatbed Truck Trailer​-1

Flatbed truck trailer  | Flatbed truck trailer for sale ​ | truck and flatbed trailer for sale​

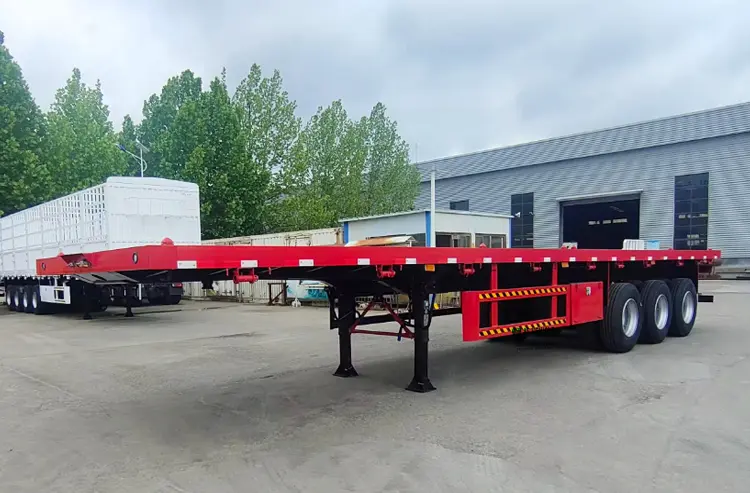

Flatbed Truck Trailer​-2

Flatbed truck trailer  | Flatbed truck trailer for sale ​ | truck and flatbed trailer for sale​

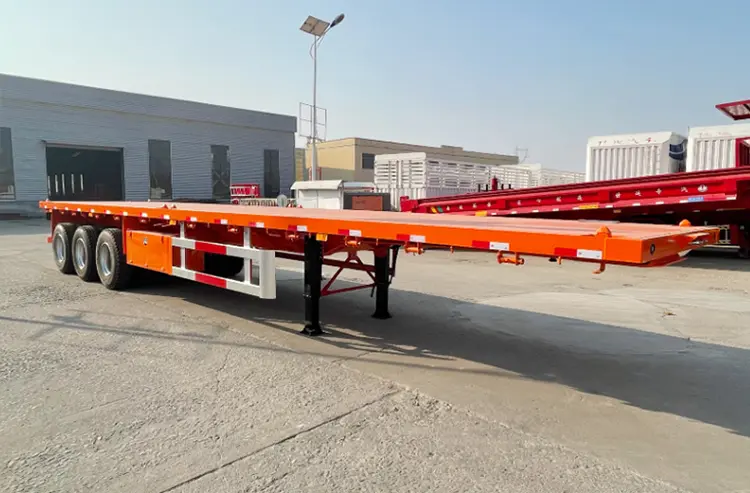

Flatbed Truck Trailer​-3

Flatbed truck trailer  | Flatbed truck trailer for sale ​ | truck and flatbed trailer for sale​
