40 Feet Flatbed Trailer Specification
The basic information of 40 Feet Flatbed Trailer is as follows:
Size: the standard size of 40 Feet Flatbed Trailer is 12450mm(13500mm)L x 2550mm(24800)W x 1560mmH.
Structure: the height of longitudinal beam is 480mm, the thickness of upper wing plate is 8mm, the thickness of lower wing plate is 10mm, and the thickness of web plate is 6mm. the vehicle is equipped with 2 toolboxes, 2 spare tyre carriers and 12 sets of container locks. In addition, the vehicle usually uses Fuhua 13T axles and may have 2/3 axles.
Configuration: The configuration of the 40ft flatbed trailer includes 12 tyres, a payload of 40 tonnes, a vehicle overall mass of 46 tonnes, a deadweight of 6.5 tonnes, a maximum axle load of 13 tonnes, a maximum loading mass of 50 tonnes, and a maximum speed of 120km/h.
Uses and advantages of 40 Feet Flatbed Trailer:
Usage: 40ft flatbed trailer is suitable for a variety of scenarios, including the transport of road construction equipment, large objects, power station equipment, steel and so on. Due to its reasonable structure and high rigidity and strength, it is able to support loads and mitigate impacts.
Advantage: 40ft flatbed trailer is well-structured with high rigidity and strength and is suitable for transporting a wide range of mechanical equipment and large objects. Its design makes the loading and unloading process automated without the need for human involvement, which greatly improves work efficiency.
40 Feet Flatbed Trailer Dimensions
Main size | Overall length | 12450mm |
Overall width | 2550mm | |
Overall height | 1560mm | |
Loading capacity | 60T. | |
Chassis | Main beam | Material of high strength steel Q345B. Height 500mm. Top/middle/bottom flange:14/8/16mm. Welded by automatic submerged-processes. |
Main cross beam | Material is high strength steel Q345B. Welded by automatic submerged-arc processes |
|
Loading deck | Material: Carbon steel Q345. Floor thickness 3 mm checkered plate |
|
Landing gear | JOST 28T model landing gear with static capacity of 80T. Double speed linked type, operated at one side. |
|
King pin | JOST 2 inches size, installed on the kingpin plate. 3.5 inches available if want. |
|
Axle | BPW/FUWA, 3 sets, 13T model axles, with double tires formation. | |
Tire | Tire sized 11/12/315/80R22.5, radial tubeless tires. | |
Wheel rim | Sized 8.5/9.0X22.5, steel wheel rim. 12 pcs of wheel rim per trailer. |
|
Suspension | Mechanical steel suspension system/ Air suspension/Bogie suspension | |
Brake system | WABCO valve, Dual line air drum brake system with T30/30 type double brake chambers on each axle. | |
Light system | 12v/24v light system. LED lights, including side, rear, turning. |
|
ABS system | ABS system installed, WABCO or Kemi brand. | |
Others | Color optional. One set of standard tools in tool box. |
Spot Promotion! Buy Flatbed Trailer and Free Tires
40 Feet Flatbed Trailer Price: Customisation
SF Trailer supply 4 Axles 40 Feet Flatbed Semi Trailers, which are very popular and competitive with their heavy capacity and durable quality. Except loading 20 inches and 40 inches containers, 40 feet flatbed trailer can also transport bulk goods, such like bagged cement, steel, wood, ect. In order to take care of the diversified uses, we equip with sufficient rope hooks and rope tighteners on both sides of our flatbed and drop side trailers.
40 Feet Flatbed Trailer | 4 ton flatbed trailer | 40ft flatbed trailer | 4 axle flatbed trailer
40 Feet Flatbed Trailer | 4 ton flatbed trailer | 40ft flatbed trailer | 4 axle flatbed trailer
40 Feet Flatbed Trailer | 4 ton flatbed trailer | 40ft flatbed trailer | 4 axle flatbed trailer

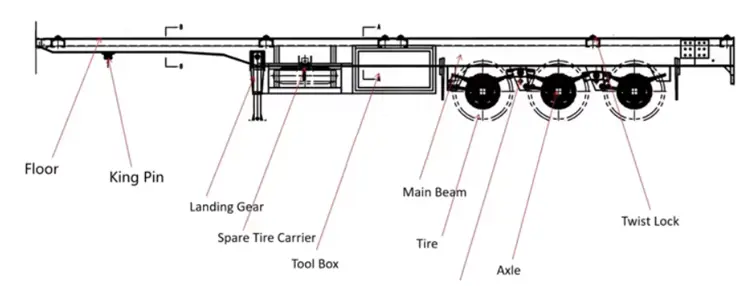

40 Feet Flatbed Trailer Drawings
40 Feet Flatbed Trailer | 4 ton flatbed trailer | 40ft flatbed trailer | 4 axle flatbed trailer
