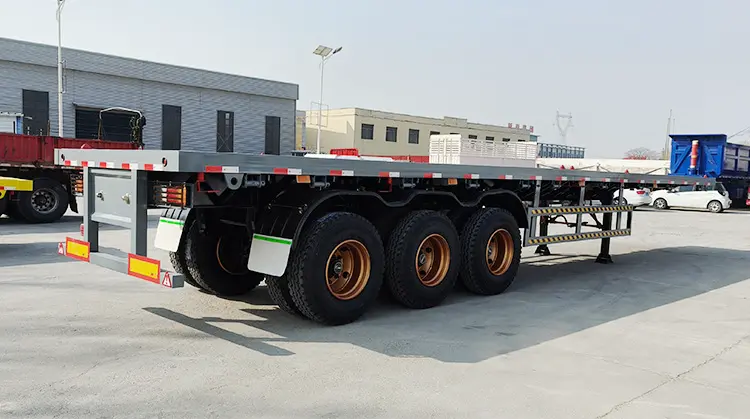

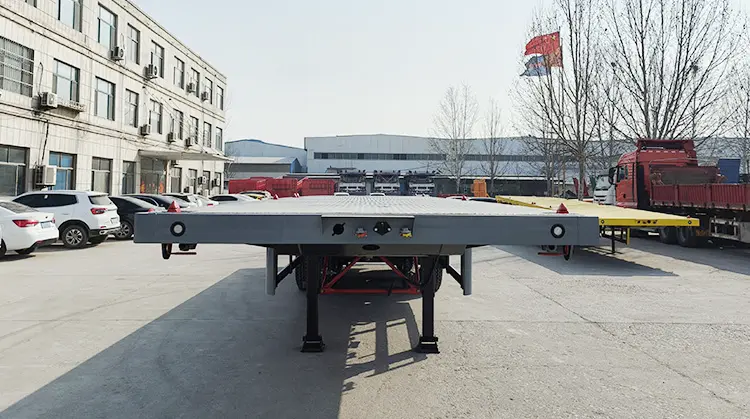

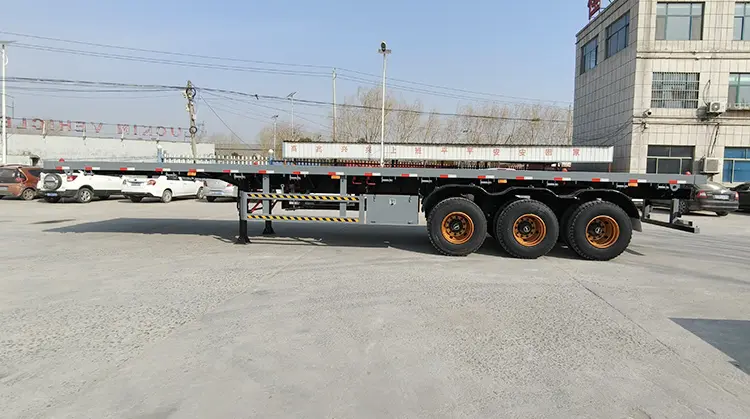

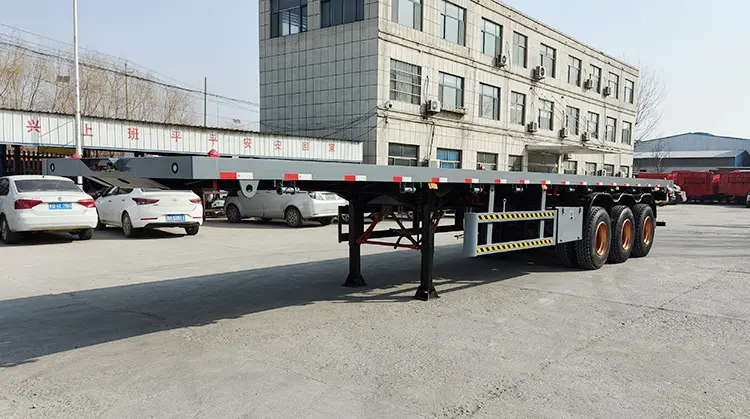

20 Foot Flatbed Trailer - 20ft flatbed trailer

Features of 20 Foot Flatbed Trailer:

20 Foot Flatbed Trailer- Loading over-dimensional cargo: Due to its design without sidewalls and top, the flatbed container is particularly suitable for loading over-length, over-width and over-height cargo, such as machinery, timber, pipelines, vehicles, and so on. Due to its design, these special sized cargoes can be easily loaded and secured.
20 Foot Flatbed Trailer – Quick loading and unloading: the loading and unloading process of 20 Foot Flatbed Trailer containers is relatively simple and quick, especially suitable for direct changeover from one means of transport to another, without moving the cargo inside the box to complete the transfer.
20 Foot Flatbed Trailer -Multi-purpose: In addition to loading over-limit cargo, 20 Foot Flatbed Trailer can also be used for loading bulk cargo, heavy machinery, construction equipment and other types of goods. Its versatility makes the flatbed container has a wide range of application prospects in logistics transport.
Because of 20 Foot Flatbed Trailer large capacity, multifunctionality and convenient loading and unloading characteristics, the 20-foot flatbed trailer has an important position in logistics transport, and 20 Foot Flatbed Trailer is suitable for a variety of cargo transport needs.

20 Foot Flatbed Trailer Dimensions

Tare Weight: about 7.2 T;

Payload: 60 T;

Dimension (L*W*H): 12500mm*2500mm*1500mm;

Main beam: 500mm height, top plate 14mm thickness*140mm width, bottom plate 16mm thickness*140mm width, middle plate 8mm thickness;

Twist lock: 4+4/8/12 pcs, which could support 1×20” container, 2×20” containers or 1×40” container one time;

Platform: 3mm thickness checkered plate

King pin: JOST 2.0/3.5 inches (bolted or welded);

Axles: BPW/FUWAbrand, 13T, 3pcs;

Suspensions: Mechanical suspension (America type or German type);

Leaf springs: 10 layers 90mm*16mm, 6 units;

Tires: 11R22.5/12R22.5/11.00R20/12.00R20/315/80R22.5/385/65R22.5, 12pcs+1pc spare tire;

Rims: 9.0-22.5, 13pcs;

Landing gear: JOST 28T, Linkage Outrigger;

Spare tire carrier: 1pc;

Tool box: 1 unit;

ABS: Optional

Brake system: WABCO 6 relays valve; T30/30+T30 air chamber, 40L air tanks;

Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable.

Accessories: 1 unit tool box, 1 pc spare tire carrier, all set of standard tools.

Others as the factory standard or according to the customer’s requirements.
